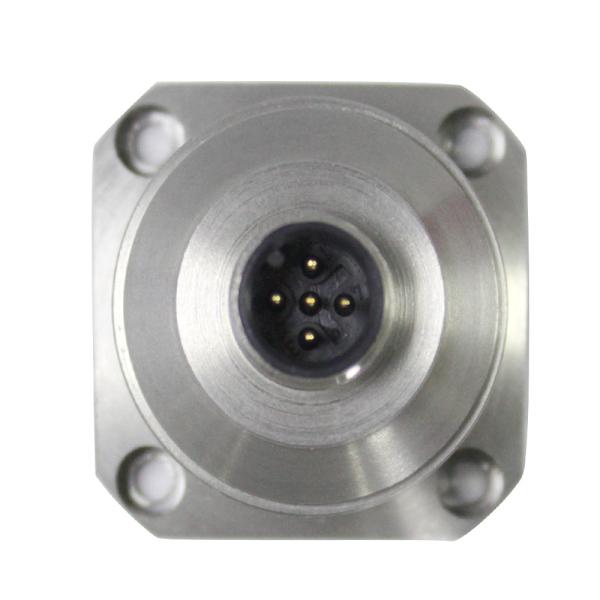

1KHz MEMS 3 Axis Accelerometer Sensor TTL AKF392 RS232

  • 1
  • 2
  • 3

Model Number : AKF392-2G

Place of Origin : Guangdong, China

Brand Name : RION

Packaging Details : cartons

MOQ : 1 Pieces

Price : $235.00/Pieces

Certification : CE, ISO

Payment Terms : T/T, PAYPAL

Supply Ability : 3000 PCS/MONTH

Delivery Time : 7 DAYS FOR SAMPLES

Theory : MEMS

Brand : accelerometer sensor

Output Type : RS232, RS485 or TTL

Mounting Type : standard , magnetic

Measuring Range : max +/-40G

Technology : MEMS

Function : vibration testing

Acceleration Range : max range +/-40G

Voltage - Input : DC9-36V

Accelerometer output : RS232, RS485, TTL

power supply : 9-36V

anti-impact : 2000G

working temperatur : -40°C ~ +85°C

store temperature : -55°C ~ +100°C

size : L34.4*W34.4*H38mm

weight : 73.5g

measuring range : ±2g ,±4g,±8g,±10g ,±20g,±40g

Resolution/Threshold (@ 1Hz) : < 1mg(max)

Bandwidth (3Db)) : 1000Hz

Usage : VIBRATION SENSOR

Output : Digital Sensor

Interface : Digital

Contact Now

3 Axis Accelerometer RS485 3 Axis MEMS Based Accelerometer Price

▶ PRODUCT FEATURES

● Three-axis (X,Y,Z)
● output: RS232；RS485；TTL
● power voltage: 9-36V
● anti-impact: 2000G
● Size: L50×W50×H38mm
● weight: 73.5g
● work temp:-40°C to +85°C
● Storage temp:-55°C to +100°C
● Excellent deviation stability
● Excellent performance (impact, vibration and temperature)

▶ APPLICATION

● crash record, fatigue monitoring and prediction

● wind power generation

● Low frequency vibration and automatic monitoring

● automobile

● Large machinery, engine

● armamentarium

● bridge

● road roller

▶ PRODUCT PARAMETERS
Range
±2
±4
±8
±10
±20
±40
g
Deviation Calibration
<1
<1
<1
<1
<1
<1
mg
Measuring Axial
X,Y,Z
X,Y,Z
X,Y,Z
X,Y,Z
X,Y,Z
X,Y,Z
axis
Up/Off Power Repeatability
<2
<2
<2
<2
<2
<2
mg(max)
Deviation temperature coefficient
0.01
0.01
0.01
0.01
0.01
0.01
%/℃
(Typical value)
Resolution/Threshold (@ 1Hz)
< 1
< 1
< 1
< 1
< 1
< 1
mg(max)
Nonlinearity
<0.5
<0.8
<1
<1
<1
<1
% FS(max)
Frequency response
2.4
2.4
2.4
5.5
5.5
5.5
kHz
Bandwidth (3Db))
500
500
500
500
500
500
Hz
Cross-axis sensitivity
1
1
1
2
2
2
%
Lateral vibration sensitivity ratio
1
1
2
5
5
5
%
Resonance frequency
2.4
2.4
2.4
5.5
5.5
5.5
kHz
noise density
21
21
21
86.6
86.6
86.6
μg/√Hz
0g output 2.5V
<0.01
<0.01
<0.01
<0.008
<0.008
<0.008
mV
Output rate
5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz
Output interface
RS232/RS485/TTL
Protocol
Rion Standard Protocol And Modbus Rtu Protocol
Reliability
MIL-HDBK-217,Grade 2
Shock Resistance
100g@11ms,Triaxial And Identical (Half Sine Wave)
Recovery Time
<1ms(1000g, 1/2 Sin 1ms,Shock Acting On The i Axis)
Vibrate
20g Rms,20~2000Hz (Random Noise ,o ,p,i Per Axis For Action 30 Minutes
Reliability
MIL-HDBK-217,Grade 2
Shock Resistance
100g@11ms,Triaxial And Identical (Half Sine Wave)
Input(Vdd_Vss)
9-36 VDC
Recovery Time
<1ms(1000g, 1/2 Sin 1ms,Shock Acting On The i Axis)
Vibrate
20g Rms,20~2000Hz (Random Noise ,o ,p,i Per Axis For Action 30 Minutes )
Current Consumption
<60mA @ 12 VDC
Connector
Industrial Standard M12 Connector
Weight
73.5g
Dimension
34.3*34.3*38.5mm

1KHz MEMS 3 Axis Accelerometer Sensor TTL AKF392 RS232
1KHz MEMS 3 Axis Accelerometer Sensor TTL AKF392 RS232
1KHz MEMS 3 Axis Accelerometer Sensor TTL AKF392 RS232
